Ladders by A-1 Equipment Rental Center
12' or 14' Step Ladders
Step Ladders
Pricing
1 Day Minimum
$20 Minimum Rental
1 Day $20
1 Week $60
4 Week $180
...........................................................
12"'or 14' Step Ladder-375 lb load capacity
- Extra heavy duty aluminum Holster Top®
- Thick side plates
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Slip-resistant Traction-Tred® steps are single riveted and have extra wide knee braces
- Heavy duty internal spreaders
- Full set of rear horizontals spaced one per foot
- Glas*Mark® Violator stripes on rails allow ladder to be more visible
- EDGE® - bracing system helps to decrease damage to rail
- Molded external rail shield helps protect against abrasion damage
- Shoe pads riveted to the EDGE® structure
- Every rivet backed up by metal plate or washer to protect rails
Specifications
 |
|||||
|
|||||
| Model No. | Size | Approx. Width | Approx. Spread | Approx. Cu. Ft. Per Unit | Approx. Shipping Wt. Lbs. |
|
|||||
|
|||||
|
|||||
| 7303 | 3' | 19-3/4" | 23-1/2" | 2.5 | 13.0 |
| 7304 | 4' | 21-1/2" | 29-3/4" | 3.5 | 16.0 |
| 7305 | 5' | 23-1/4" | 35-7/8" | 4.6 | 19.5 |
| 7306 | 6' | 25" | 42" | 5.8 | 22.5 |
| 7308 | 8' | 28-1/2" | 54-3/4" | 8.5 | 31.0 |
| 7310 | 10' | 32" | 66-5/8" | 11.4 | 40.5 |
| 7312 | 12' | 35-1/2" | 79" | 14.8 | 50.0 |
|
|||||
|
|||||
| Dimensions | |||
|
|||
| Top: | 7-1/4" x 14-7/8" | Steps: | 3" wide |
| Front Rails: | 3-1/8" wide | Rear Rails: | 1-7/8" wide |
| Flange: | 1-3/16" wide | Flange: | |
24' & 32' Extension Ladders
Pricing for 24' Extension
1 Day Minimum
$30 Minimum Rental
1 Day $30
1 Week $90
4 Week $270
...........................................................
Pricing for 32' Extension
1 Day Minimum
$40 Minimum Rental
1 Day $40
1 Week $120
4 Week $360
...........................................................
Extension Ladders

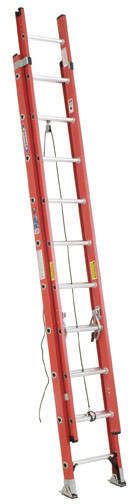

24' & 32' Extension Ladders - 300 lb load capacity
- Pre-pierced holes for easy field installation of accessories
- Direct rung to rail connections
- Interlocking side rails
- Base and fly separate easily to use base section as single ladder
- Internal guides on bottom of fly section securely interlock rails
- Molded rung braces
- Durable rail shield bracket and shoe with Shu-Lok®, slip-resistant pad and spur plate
- Rope clamp ties rope to rung
- Rugged gravity spring locks operate smoothly
- Slip-resistant Traction-Tred® D-rungs
- Heavy duty pulley with rope
- External guides at top of base section securely interlock rails. Two sets on 36' and 40' models
- Mar-resistant molded end caps
- Exclusive Alflo® rung joint means Twist-Proof® performance
Specifications
|
|||||
|
|||||
| Model No. | Total Length Sections | Total Length | Maximum Working Length | Approx. Cu. Ft. Per Unit | Approx. Shipping Wt. Lbs. |
|
|||||
|
|||||
|
|||||
| D6216-2++ | 16' | -- | 13' | 7.0 | 36.5 |
| D6220-2 | 20' | -- | 17' | 8.7 | 44.5 |
| D6224-2 | 24' | -- | 21' | 10.3 | 52.0 |
| D6228-2 | 28' | -- | 25' | 12.0 | 59.5 |
| D6232-2 | 32' | -- | 29' | 13.7 | 71.5 |
| D6208-1 | -- | 8' | -- | 4.7 | 19.5 |
| D6210-1 | -- | 10' | -- | 5.8 | 23.0 |
| D6212-1 | -- | 12' | -- | 6.9 | 27.0 |
| D6214-1 | -- | 14' | -- | 8.0 | 31.0 |
| D6216-1 | -- | 16' | -- | 9.1 | 37.0 |
| D6220-1 | -- | 20' | -- | 11.5 | 45.5 |
| D6236-2 | 36' | -- | 32' | 15.3 | 84.5 |
| D6240-2 | 40' | -- | 35' | 17.0 | 92.5 |
|
|||||
|
|||||
++ D6216-2 is not equipped with rope and pulley
| Dimensions | |||
|
|||
| Rails: | 3-5/16" wide | Fly Width: | 16" outside rails |
| Flange: | 1-3/16" wide | Base Width: | 19" outside shoes |
| Rungs: | 1-1/2" | ||
